Model # T Kit (Five per box) |
Model # WT Kit (Five per box) |
Model # Set (Ten per box) |
French Size | Sheath Length | Dilator length |
---|---|---|---|---|---|
STANDARD | |||||
ASG04010 | ASG04010GW | ASG04010P | 4 F | 10 cm | 15 cm |
ASG05010 | ASG05010GW | ASG05010P | 5 F | 10 cm | 15 cm |
ASG06010 | ASG06010GW | ASG06010P | 6 F | 10 cm | 15 cm |
ASG07010 | ASG07010GW | ASG07010P | 7 F | 10 cm | 15 cm |
ASG08010 | ASG08010GW | ASG08010P | 8 F | 10 cm | 15 cm |
ASG09010 | ASG09010GW | ASG09010P | 9 F | 10 cm | 15 cm |
ASG10010 | ASG10010GW | ASG10010P | 10 F | 10 cm | 15 cm |
ASG11010 | ASG11010GW | ASG11010P | 11 F | 10 cm | 15 cm |
ASG12010 | ASG12010GW | ASG12010P | 12 F | 10 cm | 15 cm |
LONG | |||||
ASG04023 | ASG04023P | 4 F | 23 cm | 28 cm | |
ASG05023 | ASG05023P | 5 F | 23 cm | 28 cm | |
ASG06023 | ASG06023P | 6 F | 23 cm | 28 cm | |
ASG07023 | N/A | ASG07023P | 7 F | 23 cm | 28 cm |
ASG08023 | ASG08023P | 8 F | 23 cm | 28 cm | |
ASG09023 | ASG09023P | 9 F | 23 cm | 28 cm | |
ASG10023 | ASG10023P | 10 F | 23 cm | 28 cm | |
ASG11023 | ASG11023P | 11 F | 23 cm | 28 cm | |
ASG12023 | ASG12023P | 12 F | 23 cm | 28 cm |

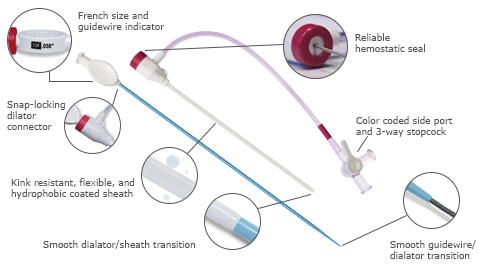

The Adelante® Sigma introducer sheath is the next generation in vascular access, featuring the latest hemostatic valve technology, which allows for the introduction of small to large devices.
