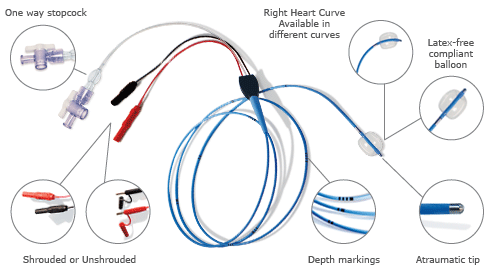

Helios™ Flow Directed Temporary Pacing Lead with Balloon
• Accurate flow-directed placement
• Latex-free compliant 8 mm balloon
• 5F (1.67 mm) lead body diameter
• Usable lead length 110 cm
• 15 mm electrode spacing
• Electrical resistance of less than 100 Ω
• Atraumatic tip configuration
• 6 F suggested introducer size
• Fixed connectors available with 2 mm pins, shrouded or unshrouded
• FDA clearance and CE certified
• Latex-free compliant 8 mm balloon
• 5F (1.67 mm) lead body diameter
• Usable lead length 110 cm
• 15 mm electrode spacing
• Electrical resistance of less than 100 Ω
• Atraumatic tip configuration
• 6 F suggested introducer size
• Fixed connectors available with 2 mm pins, shrouded or unshrouded
• FDA clearance and CE certified
 |
||||
| Model No. Kit | French size |
Usable Length | Balloon diameter |
2mm Pin |
|
||||
| Straight | ||||
| H05110S | 5F | 110cm | 8mm | shrouded |
| H05110U | 5F |
110cm | 8mm | unshrouded |
| Right heart curve | ||||
| H05RH110S | 5F | 110cm | 8mm | shrouded |
| H05RH110U | 5F |
110cm | 8mm | unshrouded |
Leads supplied sterile. For single use only.
Standard lengths are noted above.
Other lengths may be available upon request.
Sterile kit contains:
(1) One Helios™ temporary pacing lead with balloon
(1) One volume limited syringe
Helios™ convenience kit also available
Other kit configurations available upon request
Sterile packaged in inner and outer tray.
One kit per box.
Click the links below to see related products
Helios™ Flow Directed Temporary Pacing Lead with Balloon
is a latex-free radiopaque bipolar temporary pacing lead with balloon. It is suitable for both recording intracardiac signals and temporary pacing.
