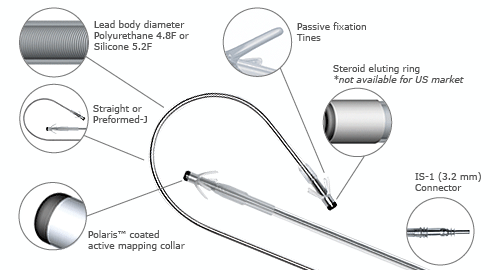

The RZ permanent pacing lead - showing Lead body diameter Polyurethane 4.8F or Silicone 5.2F, Passive fixation tines, Steroid eluting ring not available for US market, Straight or preformed J, IS 1 (3.2mm) connector, Polaris coated active mapping collar
Models
RZ 48 R (48cm)
RZ 52 R (52cm)
RZ 58 R (58cm)
RZ 48 RU (48cm)
RZ 52 RU (52cm)
RZ 58 RU (58cm)
 RZ 44 RJU (44cm)
RZ 52 RJU (52cm)
RZ 58 RJU (58cm)
Ventricular placement
Straight
Straight

Atrial placement
Preformed J
Polarity
Unipolar
Fixation
Fixation tines
Insulation
Silicone
Polyurethane
Polyurethane
Lead body diameter
5.2 F
4.7 F
4.7 F
Introducer size
7F
Tip electrode
Pt/Ir with Polaris™ coating
Ring electrode
Pt/Ir
Conductor
Quadrifilar
Compatibility
Pulse generators accepting IS-1 connectors


Models
Not for sale in the US
RZ 48 ER (48cm)
RZ 52 ER (52cm)
RZ 58 ER (58cm)
RZ 48 ERU (48cm)
RZ 52 ERU (52cm)
RZ 58 ERU (58cm)
 RZ 44 ERJU (44cm)
RZ 52 ERJU (52cm)
RZ 58 ERJU (58cm)
Ventricular placement
Straight
Straight

Atrial placement
Preformed J
Polarity
Unipolar
Fixation
Fixation tines
Insulation
Silicone
Polyurethane
Polyurethane/silicone
Lead body diameter
5.2 F
4.7 F
4.7 F
Introducer size
7F
Tip electrode
Pt/Ir with Polaris™ coating
Steroid
< 1mg dexamethasone sodium phosphate
Ring electrode
Pt/Ir
Conductor
Quadrifilar
Compatibility
Pulse generators accepting IS-1 connectors





Click the links below to see related products


Lead Introducers
Lead Adaptors
Custom Leads
How to buy
Reimbursement

Small profile passive fixation unipolar pacing lead

• Small profile lead body
• Flexible tip design
• Polaris™ tip electrode
• Straight and preformed J versions
• IS-1 compatible
