Implantable pacing lead header photo showing Physique active fixation pacing lead and Petite passive fixation lead

Refino™

nav arrow Back
  • Features
  • US Specs
  • Non US Specs
  • Related Products

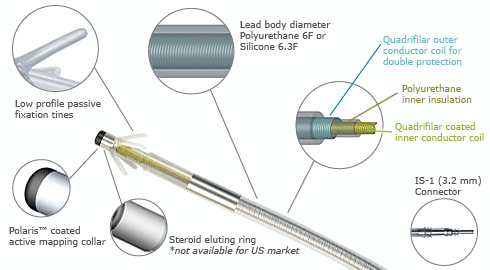

The Refino permanent pacing lead - showing Low profile passive fixation tines, Lead body diameter polyurethane 6F or silicone 6.3F, Quadrifilar coil with coated conductor for double protection, Polyurethane inner insulation, Quadrifilar coated inner conductor coil, Polaris coated active mapping collar, Steroid eluting ring not available for US market, IS 1 (3.2mm) connector
Models
Refino 48 R (48cm)
Refino 52 R (52cm)
Refino 58 R (58cm)
Refino 48 RU (48cm)
Refino 52 RU (52cm)
Refino 58 RU (58cm)
 Refino 44 RJU (44cm)
Refino 48 RJU (48cm)
Refino 52 RJU (52cm)
Ventricular placement
Straight
Straight

Atrial placement
Preformed J
Polarity
Bipolar
Fixation
Fixation tines
Insulation
Silicone
Polyurethane
Polyurethane
Lead body diameter
6.3 F
6 F
6 F
Introducer size
7F
Tip electrode
Pt/Ir with Polaris coating
Ring electrode
Pt/Ir
Electrode spacing
11mm
Conductor
Coaxial quadrifilar
Compatibility
Pulse generators accepting IS-1 connectors


Models
Not for sale in the US
Refino 48 ER (48cm)
Refino 52 ER (52cm)
Refino 58 ER (58cm)
Refino 48 ERU (48cm)
Refino 52 ERU (52cm)
Refino 58 ERU (58cm)
 Refino 44 ERJU (44cm)
Refino 48 ERJU (48cm)
Refino 52 ERJU (52cm)
Ventricular placement
Straight
Straight

Atrial placement
Preformed J
Polarity
Bipolar
Fixation
Fixation tines
Insulation
Silicone
Polyurethane
Polyurethane
Lead body diameter
6.3 F
6 F
6 F
Introducer size
7F
Tip electrode
Pt/Ir with Polaris coating
Steroid
< 1mg dexamethasone sodium phosphate
Ring electrode
Pt/Ir
Electrode spacing
11mm
Conductor
Coaxial quadrifilar
Compatibility
Pulse generators accepting IS-1 connectors





Click the links below to see related products


Lead Introducers
Lead Adaptors
Custom Leads
How to buy
Reimbursement

Refino™ small profile passive fixation bipolar pacing lead

• 6F lead body
• Flexible tip design
• Polaris™ tip electrode
• Straight and preformed J versions
• IS-1 compatible
