Implantable pacing lead header photo showing Physique active fixation pacing lead and Petite passive fixation lead

Petite™

nav arrow Back
  • Features
  • US Specs
  • Non US Specs
  • Related Products

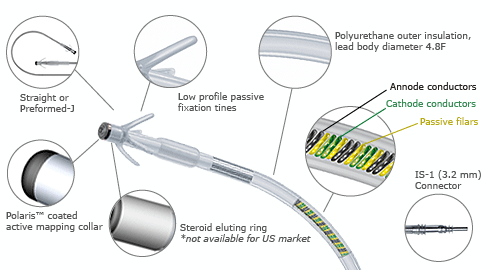

The Petite permanent pacing lead - showing Straight or preformed J, Low profile passive fixation tines, Polyurethane outer insulation lead body diameter 4.8F, Anode conductors cathode conductors passive filars, Polaris coated active mapping collar, Steroid eluting ring not available for US market, IS 1 (3.2mm) connector
Models
Petite 52 RB (52 cm)
Petite 58 RB (58 cm)
Petite 70 RB (70 cm)
Petite 78 RB (78 cm)
Petite 44 RJB (44 cm)
Petite 48 RJB (48 cm)
Petite 52 RJB (52 cm)
Petite 70 RJB (70 cm)
Ventricular placement
Straight
Atrial placement
Preformed J
Polarity
Bipolar
Fixation
Tigned flange
Lead body diameter
4.8 F
Introducer size
7F
Tip electrode
Pt/Ir with Polaris™ coating
Ring electrode
Pt/Ir
Electrode spacing
11mm
Lead body material
Polyurethane
Conductor
Hexafilar coated wire
Compatibility
Pulse generators accepting IS-1 connectors


Models
Not for sale in the US
Petite 52 ERB (52 cm)
Petite 58 ERB (58 cm)
Petite 70 ERB (70 cm)
Petite 78 ERB (78 cm)
Petite 44 ERJB (44 cm)
Petite 48 ERJB (48 cm)
Petite 52 ERJB (52 cm)
Petite 70 ERJB (70 cm)
Ventricular placement
Straight
Atrial placement
Preformed J
Polarity
Bipolar
Fixation
Fixation tines
Lead body diameter
4.8 F
Introducer size
7F
Tip electrode
Pt/Ir with Polaris coating
Ring electrode
Pt/Ir
Steroid
< 1mg dexamethasone sodium phosphate
Electrode spacing
11mm
Lead body material
Polyurethane
Conductor
 Hexafilar coated wire
Compatibility
Pulse generators accepting IS-1 connectors





Click the links below to see related products


Lead Introducers
Lead Adaptors
Custom Leads
How to buy
Reimbursement

Petite™ - The world's thinnest passive fixation bipolar pacing lead with patented lead body technology

• 4.8F lead body
• Patented coradial conductor design
• Flexible tip design
• Polaris™ tip electrode
• Straight and preformed J versions
• IS-1 compatible
